To transport honey and honey/wax mixture
Rated width 2 inch incl. hose connection DN 50- 51mm
Motor gear unit at 1.5 kW 400 Volt 16 A
Rotaring speed < 300 rpm to prevent air inclusions in the honey
Incl. chassis of stainless steel
Cable length 4 metres, incl. plug
With turning switch for drain, inlet and outlet
The pump is designed for both transport devices -
Approx. 2.5 bar max.

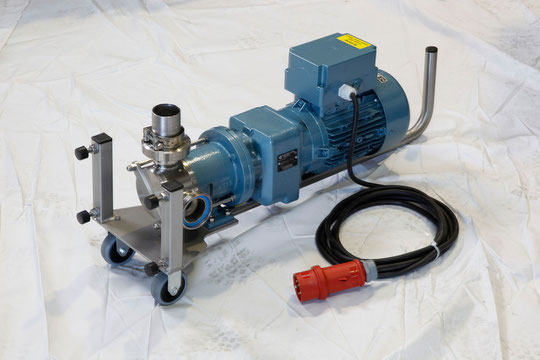

Eccentric screw pump
Rated width 2 inch incl. hose connection Ø 51mm
Motor gear unit at 1.5 kW 400 Volt 16 A
Incl. chassis of stainless steel
Cable length 4 metres, incl. plug
With turning switch for drain, inlet and outlet
The pump is designed for both transport devices.
Feed pump
Feed pump for pumping syrup
Large-scale self-priming gear pump with diagonal teeth
High-performance 7 PS 4 stroke gasoline motor
Low operating speed of the pump (700 rpm) or a long service life
Simple starting by use of the centrifugal force coupling
Integrated bypass
transports undiluted syrup as well
freely adjustable pressure 2-4 bar
Recommendation Pressure hose 32 mm. Maximum length: 20 m
Connection: Suction-side 50 mm, pressure-side 1 1/4“ (32 mm hose connection)
Weight: 60 Kg, Dimensions: 63 x 56 x 49cm (LxWxH)
